RUGER M77 (Older style and Tang Saftey Model)
and M77 MKII (Newer Style)
Standard and Hawkeye Rifle Scope Mount
Long Action and Short Action
WEIG-A-TINNY®
Weaver and Picatinny Compatible

Menu

Ruger Redhawk Blackhawk Super Blackhawk GP-100
Ruger M77 MKII Rifle scope mount

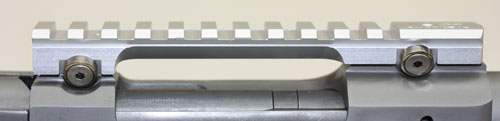

This Photo is The Ruger M77 Mount Short Action
The X in the part number signifies the adjustable recoil lug

NOTE: We have left hand models in stock for the following part numbers
M77XB M77XS    M77LXB M77LXS    M77LX20B M77LX20S
Please order the model you want and in the shopping cart Order Comments
box let us know you want the left hand version
An email with the order will also work

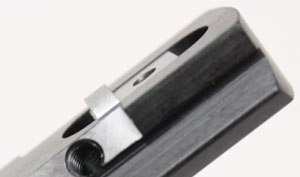

RUGER M77 Scope Mount Recoil Lug Weigand

Adjustable Recoil Lug on All M77X and M77LX Model Scope Mounts


Ruger M77,  M77 MKII and Hawkeye Rifle Scope Mount WEIG-A-TINNY®
Fits Weaver and Picatinny style attachments

NOTE: Not for use on the following calibers
338 Winchester Magnum
375 H&H Magnum Caliber
375 Ruger
416 Ruger
Bullet weight times velocity should not exceed 700,000

M77 and M77 MKII and Hawkeye WEIG-A-TINNY® Style Scope Mount-Our Newest Scope Mount in the Ruger Rifle line. This mount converts the Ruger scope ring attaching points to a WEIG-A-TINNY® Picatinny Weaver style mounting point.
To determine if your rifle is the short action you need to measure from the center of the rear scope ring slot on the top of the receiver to the center of the front scope ring slot. The short action is 4” long, approximately 1/4" larger readings are the long action.

Accepts all Weaver and Picatinny style rings and accessories.
Body made from 6061-T6 Aluminum the recoil lug is mild steel.
Available in black or silver, matte anodized finish, weighs 3.1 ounces.


What WEIG-A-TINNY tm is

Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS

M77LXS

Ruger M77 MKII Long Action X - Silver

$79.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77LXB

Ruger M77 MKII Long Action X - Black

$79.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77LX20S

Ruger M77 MKII Long Action X 20 MOA - Silver

$79.95

Scope Mount Only

Add To Cart

M77LX20B

Ruger M77 MKII Long Action X 20 MOA - Black

$79.95

Scope Mount Only

Add To Cart

View Cart

Long Action Mounts

Scope Mount Scope Mount And
Scope Ring Combo

Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS
M77LXS Ruger M77 MKII Long Action X - Silver $79.95
Add To Cart
Add To Cart
M77LXB Ruger M77 MKII Long Action X - Black $79.95
Add To Cart
Add To Cart
M77LX20S Ruger M77 MKII Long Action X 20 MOA - Silver $79.95
Add To Cart
M77LX20B Ruger M77 MKII Long Action X 20 MOA - Black $79.95
Add To Cart
View Cart
Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS

M77XS

Ruger M77 MKII Short Action X - Silver

$69.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77XB

Ruger M77 MKII Short Action X - Black

$69.95

Scope Mount Only

Add To Cart

Scope Mount &
Scope Ring Combo

Add To Cart

M77X20S

Ruger M77 MKII Short Action X 20 MOA - Silver

$69.95

Scope Mount Only

Add To Cart

M77X20B

Ruger M77 MKII Short Action X 20 MOA - Black

$69.95

Scope Mount Only

Add To Cart

View Cart

Short Action Mounts

Scope Mount Scope Mount And
Scope Ring Combo

Save 20% On The Rings
CLICK HERE FOR COMBO DETAILS
M77XS Ruger M77 MKII Short Action X - Silver $69.95
Add To Cart
Add To Cart
M77XB Ruger M77 MKII Short Action X - Black $69.95
Add To Cart
Add To Cart
M77X20S Ruger M77 MKII Short Action X 20 MOA - Silver $69.95
Add To Cart
M77X20B Ruger M77 MKII Short Action X 20 MOA - Black $69.95
Add To Cart
View Cart

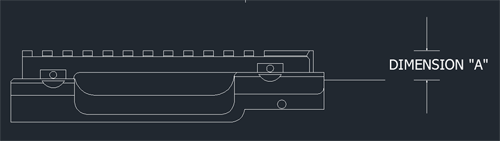

RUGER M77 Scope Mount Height Drawing

Dimension "A" is top of scope mount to top of barrel at the receiver attaching point

All Standard M77 Mounts Dimension "A" is .570"+-
All 20 MOA M77 Mounts Dimension "A" is .550+-

Add your ring height from where it contacts the top of the scope mount to the centerline of the ring
EXAMPLE: Using an M77X mount (.570") and our Medium Rings (.784") total distance is 1.354"
This height would allow for up to a 68mm Objective




Accessories
Small Screw
Thread Lock
1 ml Tube

$2.50
Add To Cart

Allen Wrench Set
1/16, 5/64, 3/32, 7/64, 1/8
Covers all Weigand Scope Mounts and Rings
$5.00
Add To Cart
